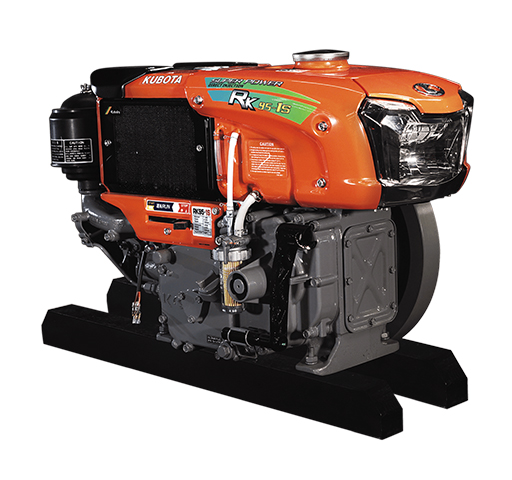

Model RK95-1S
Type Horizontal Water-cooled, 4-Cycle Diesel Engine
Number of Cylinders 1
Bore x Stroke 86 x 84 mm (3.39 x 3.31 in)
Displacement 487 cc (29.72 cu.in)
Maximum Output
hp/rpm 9.5 / 2400
kW/rpm 7.09 / 2400
Continuous Rated Output
hp/rpm 8.0 / 2200
kW/rpm 5.97 / 2200
Combustion System Direct Injection System
Compression Ratio 18
Direction of Rotation Counter Clockwise (Viewed Fronting the Flywheel)
Starting System Manual Speed – Double Handling
Lubricant System Forced Lubrication with Trochoid Pump
Cooling System Radiator
Fuel Light Diesel Oil (SAE No. 2.0)
Lubricating Oil API service CC, CD, or CF class (SAE #30, 20, 10W-30)
Cooling Water Capacity 1.6 L (0.42 US gal)
Fuel Tank Capacity 10 L (2.64 US gal)
Crankcase Oil Capacity 2.4 L (0.33 US gal)
Dry Weight 83 kg (189.6 lb)
Lamp Dynamo Output With Lamp 12V – 32W
