General Information
Model ZT140 (DI)
Type Four-stroke, water-cooled, horizontal diesel engine

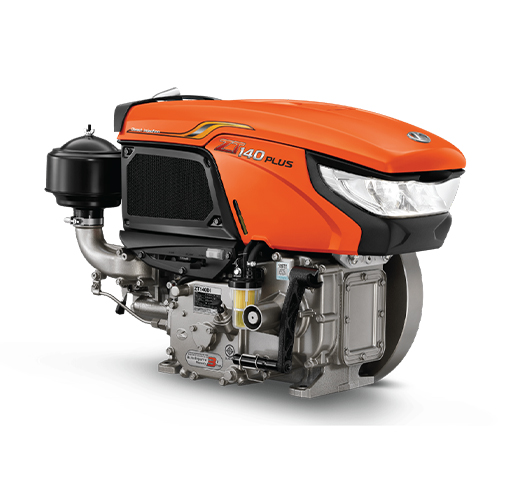

ZT140 Diesel Engine
Description
Performance
Bore x Stroke 97 x 96 mm (in)
Displacement Volume 709 cc
Maximum Power
kW/rpm 10.3 / 2400
hp/rpm 14 / 2400
Continuous Rated Output
hp/rpm 12.5 / 2400
kW/rpm 9.19 / 2400
Specific Fuel Consumption at Continuous Rated Power
g/PS-hi, g/kW-hi 240
Compression Ratio 18:1
Maximum Torque 5.1 kg-m / 1600 rpm
Cooling & Fuel System
Coolant Capacity 2.1 L
Fuel Capacity 10.5 L
Oil Capacity 2.8 L
Fuel Type Automotive used diesel fuel (SAE No. 2-D)
Lubricating Oil Grade SAE 40 API CF
Air Cleaning Type Oil bath type
Combustion System Direct Injection System
Electrical & Weight
Battery Capacity (ES Model only) 12 Volt 30 A-h battery
Rotation Direction of Flywheel Turns counterclockwise when facing the flywheel
Net Weight 112 kg
Gross Weight 127 kg
